7) Deleting Profiles Execution Results Route
This route runs at the very end of the profile workflow and removes the output data produced by the Original and the Updated profiles.

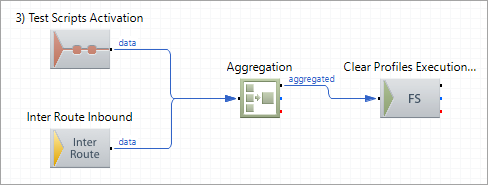

Route Structure
Route Components Description
| 3) Test Scripts Activation
|
Parent Route Inbound |
Receives data from the route 3) Test Scripts Activation. |
| Inter Route Inbound
|
Inter Route Inbound |
Receives data from the route 5) Test Data Collecting. |
| Aggregation
|
Aggregation |
Waits for the data generated on the previous steps to arrive.
When the data arrive, all the profile processes are complete and the profile is ready for teardown. Creates an XEServer exchange used as a trigger to start the teardown process. |
| Clear Profiles Execution Results
|
FS Inbound |
Removes the output folders of the Original and the Updated profiles.
|
