Step 1 Validate Request Snip 1 6 Route

This route receives a batch with 276 transactions, splits the batch into individual 276 transactions, and sends them to the back-end system. The route also generates acknowledgements and validation reports. The route stores the individual 276 transactions and the generated acknowledgements in XEServer Data Storage. The XEServer property XEC_ID is a unique identifier of the 276 batch file received as input.

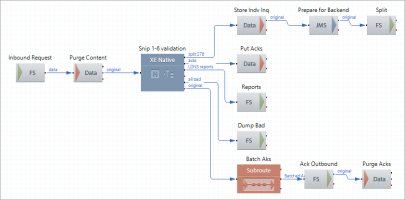

Route Structure

Route Components Description

Component Name	Component Type	Description
Inbound Request	FS Inbound	Picks up a batch with 276 transactions from the file system.
Purge Content	Data Storage Inbound	Removes all entries from the data storage.
Snip 1-6 validation	Native Processing	Splits the batch into good and bad transactions, generates acknowledgements and LDNS reports. For good transactions, the component sets the XEServer property EdifecsInqID which uses a GUID to identify each individual 276 transaction.
Store Indv Inq	Data Storage Outbound	Stores individual 276 transactions in the XEServer Data Storage using the XEServer property EdifecsInqID to identify the transaction in the storage. The XEServer property XEC_ID is used to group the transactions that relate to the same 276 batch received as profile's input.
Prepare for Backend	JMS Outbound	Sends individual transactions to Back End Emulation Route.
Split	FS Outbound	Stores individual transactions on the file system.
Put Acks	Data Storage Outbound	Stores acknowledgements in the XEServer Data Storage using the XEServer property AckType.
Reports	FS Outbound	Stores LDNS reports on the file system.
Dump Bad	FS Outbound	Stores transactions that failed to pass the XEngine validation on the file system.
Batch Acks	Subroute	Sends the original 276 batch received as input to the route Batch Acks for batching. The component returns a batch with acknowledgements through the Batched Acks output.
Ack Outbound	FS Outbound	Stores the acknowledgements on the file system.
Purge Acks	Data Storage Inbound	Removes all stored acknowledgements from the data storage.
