Back End Emulation Route

This route receives individual 276 Health Care Claim Status Inquiry transactions and for each transaction, generates a 277 response transaction using XE Translator. The Response Counter component runs a script that tracks the number of individual 276 transactions extracted from the 276 batch within the scope of one XEServer task. The Router component Response Limiter initiates the batching of individual responses once the number of generated responses matches the value of the XEServer property 277_Resp_Quantity.

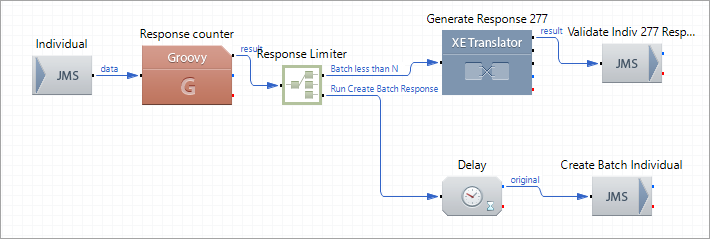

Route Structure

Route Components Description

Component Name	Component Type	Description
Individual	JMS Inbound	Receives individual 276 transactions from the queue To_BackEnd.
Response counter	Groovy	The Groovy script calculates the number of split 276 responses that come to the back-end system (within the scope of one XEServer task) and sets this number as an XEServer property Counter_276.
Response Limiter	Router	The component passes N transactions through the Batch less than N output where N is the value of the XEServer property 277_Resp_Quantity. The last transaction also goes through the output Run Create Batch Response to initiate the batching process.
Generate Response 277	XE Translator	Generates 277 responses.
Validate Indiv 277 Response	JMS Outbound	Sends the generated 277 transaction to the queue From_BackEnd for further validation.
Delay	Delay	Pauses the execution for 8 seconds before starting the batching process.
Create Batch Individual	JMS Outbound	Sends the transaction to the queue Create_Batch_Response to initiate the batching process.
