Remote Claim REST Web Service Route
This route emulates processing in a back-end system. Based on the data passed in the incoming properties file, the route returns one of the following responses:
- 200 ok along with a data file
- 400 Bad Request
- 200 ok but no data file
- No response withing a specified time limit

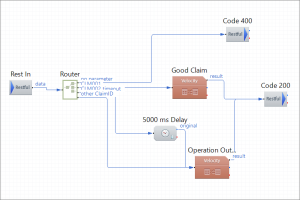

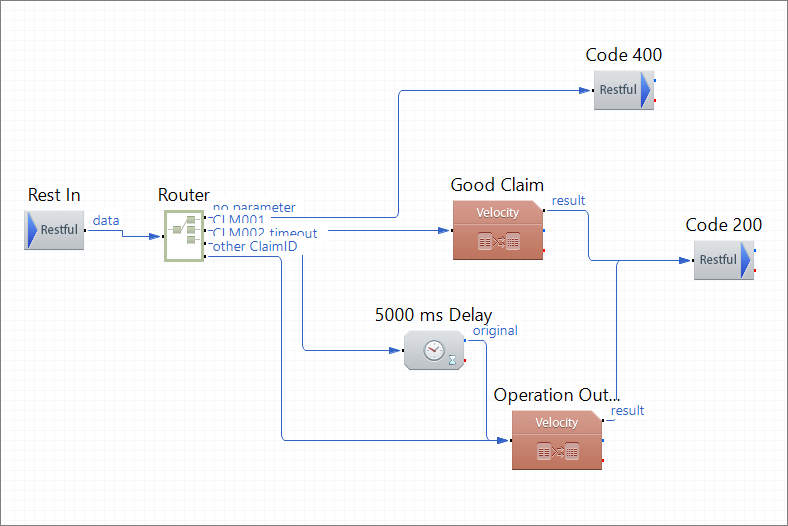

Route Structure
Route Components Description
| REST In
|
RESTful Web Service Inbound |
Receives an HTTP request. |
| Router
|
Router |
Checks the properties file passed with the incoming file to define the processing flow. |
| Code 400
|
RESTful Web Service Outbound |
Returns the emulated response 400 Bad Request to the route REST Client with Advanced Logic . |
| Good Claim
|
Velocity |
Creates a good response message. |
| 5000 ms Delay
|
Delay |
Delays processing for 5000 ms. |
| Operation Outcome
|
Velocity |
Creates a response indicating that no data have been found. |
| Code 200
|
RESTful Web Service Outbound |
Returns the emulated 200 ok response to the route REST Client with Advanced Logic . |
