REST Client with Advanced Logic Route

This subroute picks up a request from the parent route Main and submits the data to a back-end system emulated by the Remote Claim REST Web Service route for processing. Based on the received response code, the route either sends data back to the parent route or throws an exception triggering the parent route to resend the initial request.

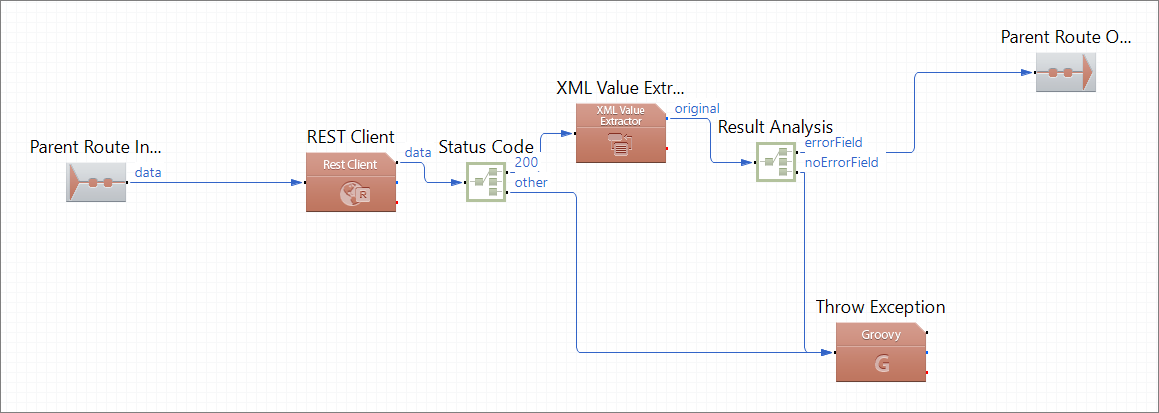

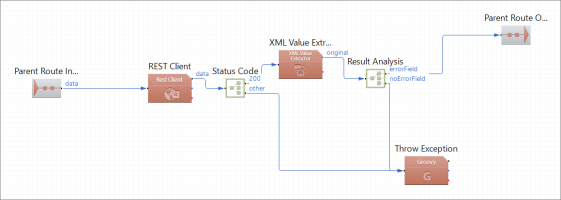

Route Structure

Route Components Description

Component Name	Component Type	Description
Parent Route Input	Parent Route Inbound	Picks up data from the parent route Main.
REST Client	REST Client	Submits the incoming data for processing in the back-end system emulated by the route Remote Claim REST Web Service.
Status Code	Router	Picks up processing results received from the route Remote Claim REST Web Service and checks the response code.
XML Value Extractor	XML Value Extractor	Extracts the portion of the response that indicates if any information has been received as a response.
Throw Exception	Groovy	Throws an exception to signal the parent route to initiate processing based on the provided QoS parameters.
Parent Route Output	Parent Route Output	Send processing results back to the parent route.
