Da Vinci 3 CRD emulation other codes

This route is an example of a Coverage Requirements Discovery (CRD) web service. The route creates response messages for the E0433 and other codes based on the Velocity templates, triggers a subroute to process the C8928 code to also create a response message, and then returns a JSON-formatted response that contains the service/ device description, costs, and other requirements.

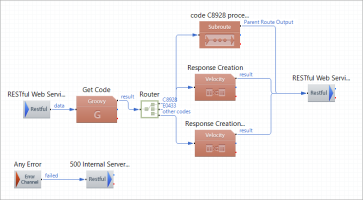

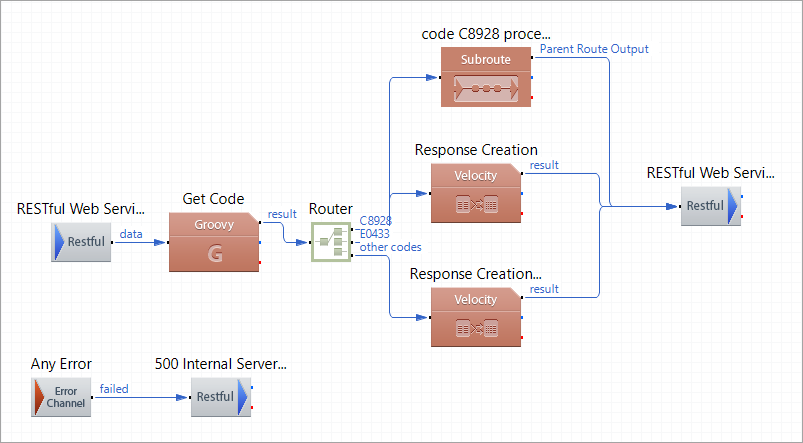

Route Structure

Route Components Description

Component Name	Component Type	Description
RESTful Web Service Inbound	RESTful Web Service Inbound	Receives a GET request with the patient's first and last names passed as a query parameter.
Get Code	Groovy	Extracts the service/ device codes from the request path.
Router	Router	Checks the requested codes C8928, E0433, and others.
code C8928 processing	Subroute	Triggers the subroute to process the C8928 code for services provided to the patient.
Response Creation	Velocity	Creates a response message for the E0433 code for devices based on the Velocity template available.
Response Creation_2	Velocity	Creates a response message for the other codes based on the Velocity template available.
RESTful Web Service Outbound	RESTful Web Service Outbound	Returns a JSON-formatted response that contains the service/ device descriptions, costs, and other requirements.
Any Error	Error Channel Inbound	Triggers an 500 Internal Server Error to send out an internal server error HTTP response when there are processing errors.
500 Internal Server Error	RESTful Web Service Outbound	Sends out an internal server error message.
