Medication Reconciliation Submit Data Route

This route receives a POST request with information on the medication prescribed by the Provider for a specific patient and submits the data to the Payer's FHIR Server.

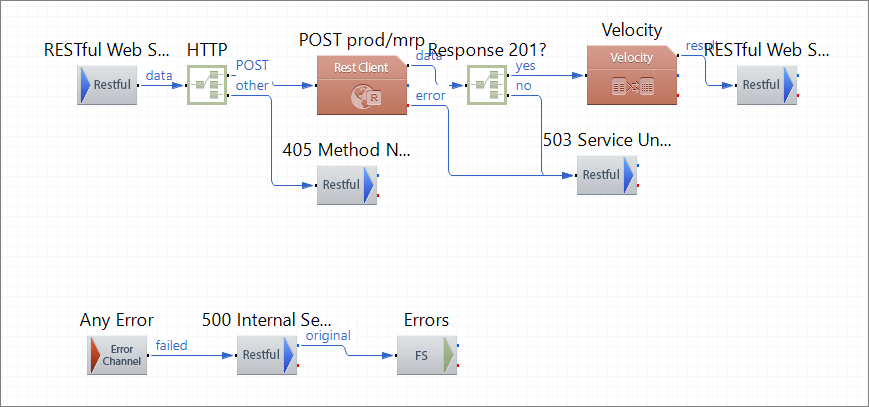

Route Structure

Route Components Description

Component Name	Component Type	Description
RESTful Web Service Inbound_1	RESTful Web Service Inbound	Receives a request to post a list of medications.
HTTP	Router	Checks the request type.
405 Method Not Allowed_1	RESTful Web Service Outbound	Sends back an error message that the request type used is not allowed.
POST prod/mrp	REST Client	Submits the incoming bundle to the Payer's FHIR server.
Response 201?	Router	Checks to see if the requested data has been successfully submitted to the Payer's FHIR Server.
Velocity	Velocity	Creates a response message based on the Velocity template available.
503 Service Unavailable_1	RESTful Web Service Outbound	Sends back a message that an error occurred while performing a call to the external service to post data.
RESTful Web Service Outbound_1	RESTful Web Service Outbound	Sends out a response with the 201 CREATED code.
Any Error	Error Channel Inbound	Triggers the 500 Internal Server Error to send out an internal server error HTTP response when there are processing errors.
500 Internal Server Error	RESTful Web Service Outbound	Sends out an internal server error message.
Errors	File System Inbound	Saves all the processing error reports to the file system.
