Configure TM Visibility Cloud Service Connector for XEngine Server

When you configure the TM Visibility Cloud Service Connector for XEngine Server, all the files that are processed through the XEngine Server profiles (that have a configured XE Native component) are available in TM Visibility Cloud Service.

As a prerequisite, you must have a profile(s) that processes transmissions using the component XE Native. Also, you have to decide which XE Native component you plan to use in Transaction Management to start the ETL packages' processing in TM Visibility Cloud Service.

To configure the TM Visibility Cloud Service Connector for XEngine Server profile(s):

  1. Contact Edifecs Support to obtain the profile's zip folder, for example, TM_Cloud_OnPremise profile.
  2. Unzip the profile TM_Cloud_OnPremise to the profile root folder ${XESRoot/Profiles/TM_Cloud_OnPremise}.
  3. Go to Edifecs Application Manager - XEServer - Environment.
  4. Click the tab Environment.
  5. Set the property TM value to true.

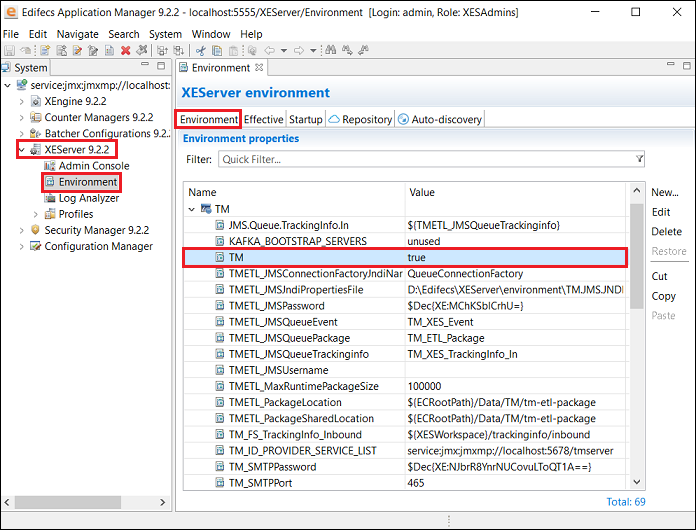

    Edifecs Application Manager - Environments tab

  6. Open the file XERegistry.xml located at ${XEUSER}/XERegistry.xml and add the following XEngine configuration settings.

    Copy
    <Product Name="Guideline">
      <Category Name="XSDNames">
        <Item Name="X12">EDI2XSD2</Item>
      </Category>
      <Category Name="Settings">
        <Item Name="FieldOffsetSize">True</Item>
      </Category>
    </Product>
    <Product Name="XEngine">
      <Category Name="XData">
        <Item Name="CreateAlways">True</Item>
      </Category>
    </Product>

    Note Make sure that you have defined the environment variable ${XEUSER}.

  7. Follow the steps below to configure the XE Native component of the profile TM_Cloud_OnPremise:
    1. Go to XEServer - Profiles - TM_Cloud_OnPremise - Service Manager - Routes - Route - TM Native Processing - TM - Packages and select the check box Create package for TM.

      Create Packages for TM

    2. Go to XEServer - Profiles - TM_Cloud_OnPremise - Service Manager - Routes - Route - TM Native Processing - TM - Events and edit the following properties:

      TM_Transmission_TrackingID = {T_ID}

      TM_Transmission_Filename = {MD_File_Name}

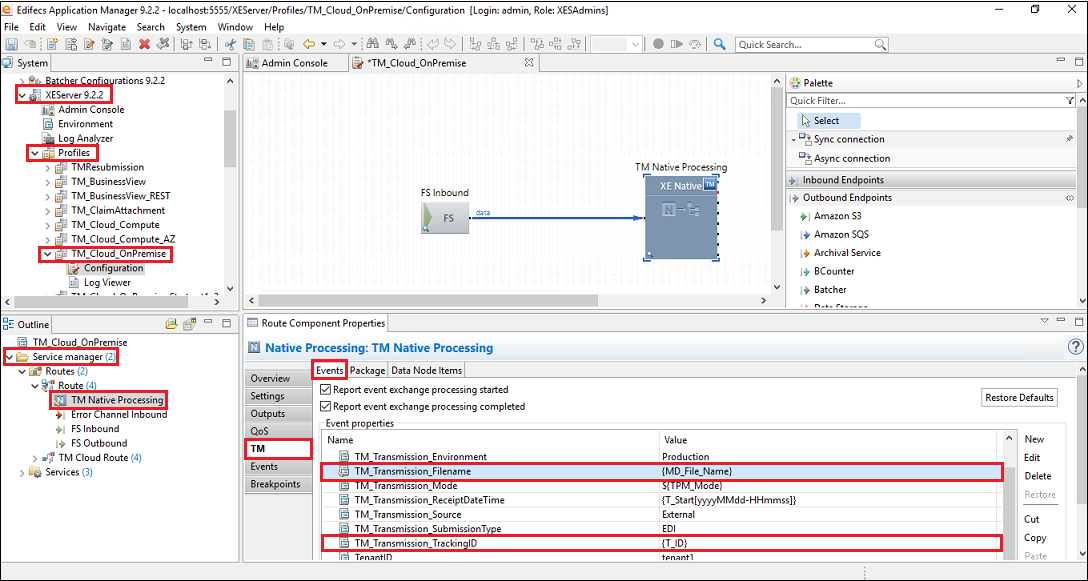

      Events tab

    3. Go to XEServer - Profiles - TM_Cloud_OnPremise - Service Manager - Routes - Route - Environment and add the following properties:

      TPM_Direction

      TPM_Mode

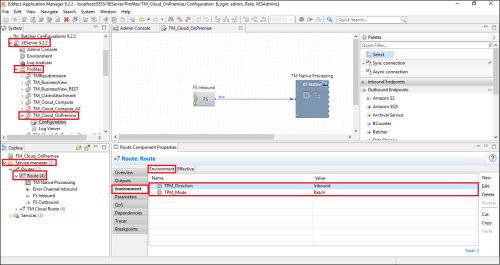

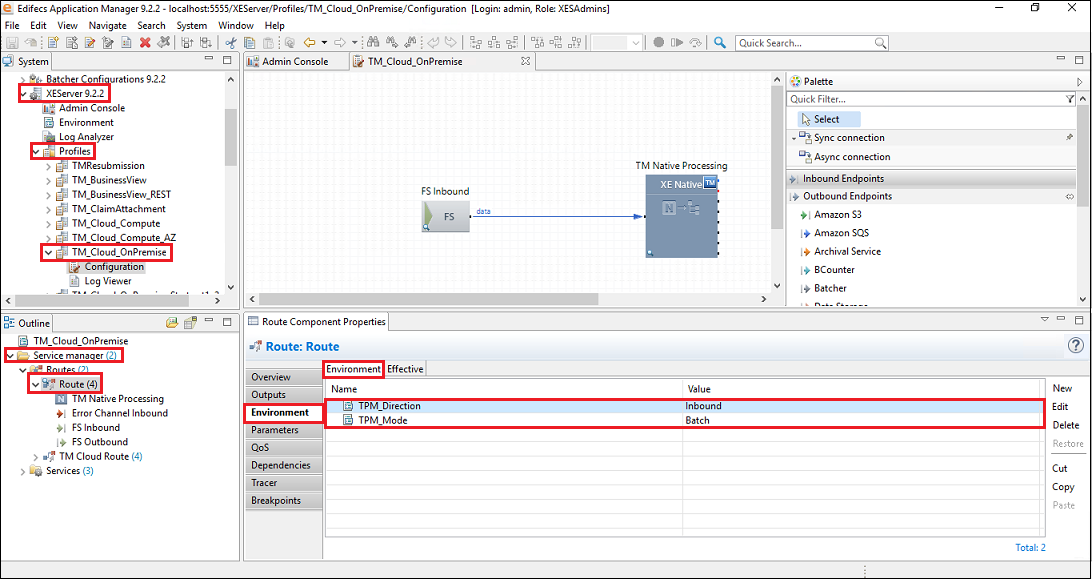

      TPM Configuration

      Note To set up and configure Trading Partner Management, see the section Partner and Contacts.
