4 Outbound 277CA Route

This route extracts 277 Claim Acknowledgements accumulated in Batcher, and merges them into a single EDI document.

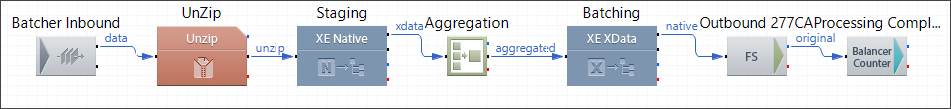

Route Structure

Route Components Description

Component Name	Component Type	Description
Batcher Inbound	Batcher Inbound	Sends out an accumulated batch of acknowledgements after all the individual claims from the original batch have been processed.
UnZip	Unzip	Unzips separate acknowledgements.
Staging	XE Native	Generates XData from acknowledgemets.
Aggregation	Aggregation	Aggregates acknowledgements into one multi-message exchange. The aggregation is complete when the route component UnZip unzips the last acknowledgement released from the batch.
Batching	XE XData	Batches acknowledgements into a single EDI document.
Outbound 277CA	FS Outbound	Stores the resulting batch of acknowledgements in the file system.
Processing Completed	BCounter Outbound	Updates the number of files generated by the profile through the counter FileProcessingCompletedFrontEnd.
