3 Delivery to Backend Route

This route handles the delivery of claim acknowledgements to one of the adjudication systems: a SOA-based or local back-end system. The route selects a suitable adjudication system based on the Line of Business indicator, which is the first three characters of the Subscriber ID and a crosswalk file. The crosswalk is located at ${XESProfile}\config\configuration\Crosswalks\ and has the following structure:

Source column	Target column
BX1 BX2 BX3 WS1 WS2 WS3 BX WS	FileSystem FileSystem FileSystem WebService WebService WebService FileSystem WebService

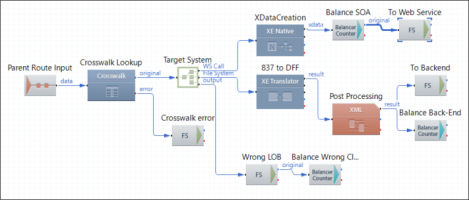

Route Structure

Route Components Description

Component Name	Component Type	Description
Parent Route Input	Parent Route	Receives claim acknowledgements from the 2_Create_277CAs route and initiates route processing.
Crosswalk Lookup	Crosswalk Lookup	Performs a lookup of the crosswalk file LOB Target System using the XEServer property LOB. As a result, the component returns a destination string for each claim acknowledgement.
Target System	Router	Directs acknowledgements to one of the destination systems. If the destination system is not determined ( the property LOB was not found in the crosswalk), the router directs such acknowledgements to the file system folder Wrong LOB.
XData Creation	XE Native	Generates XData from acknowledgements.
Balance SOA	BCounter Outbound	Increments the count of claims sent to the SOA-based adjudication system (SentToAdjSystem1 counter).
To Web Service	FS Outbound	Stores claims to be sent to a web service.
837 to DFF	XE Translator	Converts claim acknowledgements to the DFF format.
Post Processing	XML Transformer	Translates DFF data to a special destination-specific XML format using the template xml2txt.xsl that is available in the directory ${XESProfileConfig}/configuration/XSL.
To Backend	File System	Stores claims intended for the file system backend.
Balance Back-End	Router	Increments the count of claims sent to the local adjudication system (SentToAdjSystem2 counter).
Wrong LOB	FS Outbound	Stores claims whose target system have not been identified.
Balance Wrong Claims	BCounter Outbound	Increments the SentToAdjSystem2 counter that represents the count of claims with undefined back-end systems.
