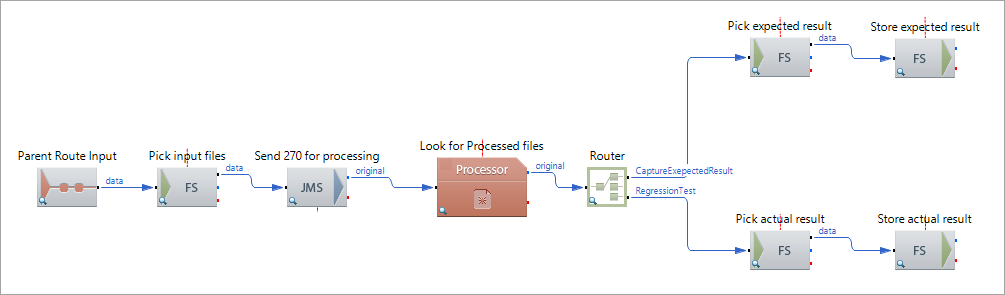

Process Data Files Route

This route sends the input test files to the Sample 270-271 profile, gets the output transactions, and stores them.

Route Components description

Component Name	Component Type	Description
Parent Route Input	Parent Route	Receives data and initiates route processing.
Pick Input Files	FS Inbound	Sends the input test files to the production route and gets the output transactions from the production route.
Send 270 for Processing	JMS Outbound	Submits the input files to the 270-271 profile for processing.
Result Watcher	Result Watcher	Waits for the 270-271 profile to process the inputs files and to generate the output files.
Router	Router	Directs the output files to the FS Inbound components to capture the Actual and Expected results.
Pick Actual Result	FS Inbound	Picks up the Actual result files from the profile.
Pick Expected Result	FS Inbound	Picks up the Expected result files from the profile .
Store Actual Result	FS Outbound	Stores the result files at the Actual result location.
Store Expected Result	FS Outbound	Stores the result files at the Expected result location.
