9) Capture Properties Route

This route extracts the properties from the output files produced by the Original and the Updated profiles. These properties are used to compare the files as defined in the Matcher Configuration.

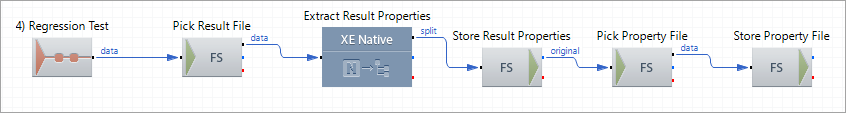

Route Structure

Route Components Description

Component Name	Component Type	Description
4) Regression Test	Parent Route Inbound	Receives a command from the route 4) Regression Test.
Pick Result File	FS Inbound	Picks up the file Ack_999 for processing from a folder specified in the Test Script.
Extract Result Properties	Native Processing	Processes the file Ack_999 and extracts the properties into the .properties file.
Store Result Properties	FS Outbound	Stores the processed file and the .properties file at a temporary location.
Pick Property File	FS Outbound	Picks up the files Ack_999 and the .properties files from the temporary location.
Store Property File	FS Outbound	Stores the files Ack_999 and the .properties files at a location specified in the Test Script.
