Service_1 Route

To emulate a scenario where the random choice of a string could result in multiple possible scenarios, this route returns one of the two strings for each incoming HTTP request. The route emulates a web service that randomly generates the NEXT or DONE string which is then sent to the 2_CallService1 Route as a response body.

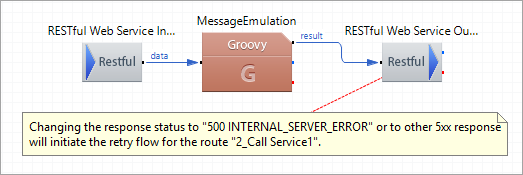

Route Structure

Route Components Description

Component Name	Component Type	Description
RESTful Web Service Inbound	RESTful Web Service Inbound	Receives an HTTP request.
Message Emulation	Groovy	Executes a Groovy script that randomly generates a response (an XEServer message exchange with either NEXT or DONE message body).
RESTful Web Service Outbound	RESTful Web Service Outbound	Returns the emulated response to the route 2_CallService1.
