HL7_To FHIR Bundle Route

This route translates individual HL7 transactions to the FHIR format and returns a FHIR bundle to the parent route HL7 Process Split.

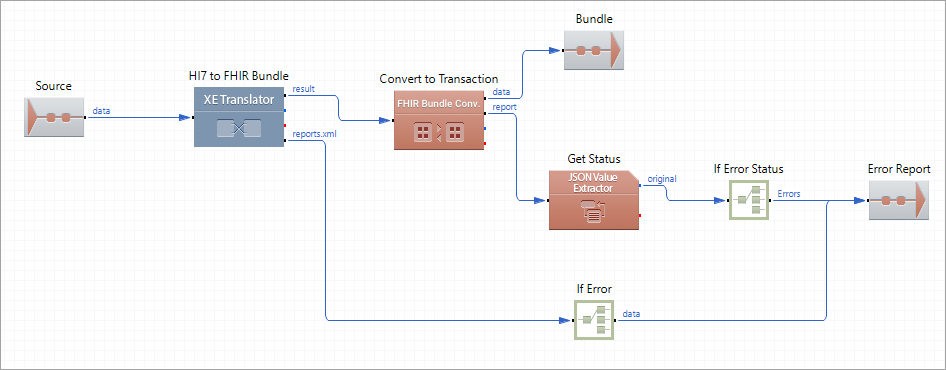

Route Components Description

Component Name	Component Type	Description
Source	Parent Route Input	Receives individual HL7 transactions from the route HL7 Process Split.
HL7 to FHIR Bundle	XE Translator	Translates HL7 data to the FHIR format.
If Error	Router	Checks to see if the errors occurred during HL7 data translation.
Convert to Transaction	FHIR Bundle Converter	Creates a FHIR bundle of the type Transaction. For each resource in the bundle, the component sets the request method to POST, creates a unique resource identifier, and sets conditional create statements for specific resource types (see component's Conditions tab).
Bundle	Parent Route Output	Returns the resulting FHIR bundle back to the route HL7 Process Split.
Get Status	JSON Value Extractor	Analyzes the conversion report file (checks the report's field "successful").
If Error Status	Route	If the bundle conversion has failed, sends the data further to report an error.
Error Report	Parent Route Output	Sends the error data back to the route HL7 Process Split.
