Bulk API Sample Profile Workflow

The profile has two routes for import and export:

  • This route exports data from a FHIR server. When the route initiates an export procedure on a FHIR server, the server does not return the data immediately; instead, the FHIR server starts getting the data ready for export and returns a special URL that is used to check the readiness of data. The profile periodically checks the readiness of data by making calls to this URL.

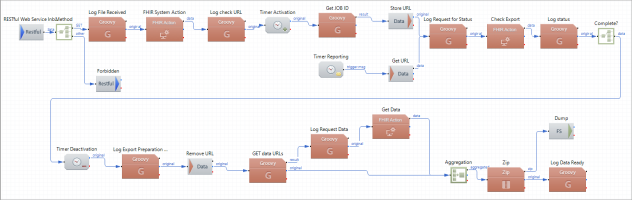

    Route Structure

    Route Components Description

    Component Name Component Type Description
    RESTful Web Service Inbound RESTful Web Service Inbound The RESTful entry point to initiate the data export process. The profile processing starts with an HTTP request to this endpoint.
    Method Router Checks the HTTP method of the initial request and passes only GET requests further down the route for processing.
    Forbidden RESTful Web Service Outbound Returns the response 400 Bad Request to the caller if the initial request method is other than GET.
    Log File Received Groovy Logs an event to indicate that a data export request has arrived.
    FHIR System Action FHIR System Action

    Initiates the export procedure on the FHIR server. The response from the FHIR server contains the header Content-Location that carries a special "status" URL similar to the following:

    https://{host}:{port}/api/v1/fhir/Job/{jobID}/$status

    Typically, it takes some time for a FHIR server to prepare a data package for export. The route periodically checks the data readiness status by making a request to this URL. The component extracts this "status" URL from the response header and passes the URL further down the route as a property.
    Log check URL Groovy Logs an event with the "status" URL.
    Timer Activation Timer Activation Activates the route timer. Once activated, the component Timer Reporting triggers the data readiness check every 30 seconds.
    Get JOB ID Groovy Extracts the export job ID from the "status" URL.
    Store URL Data Storage Outbound Stores the job ID and the "status" URL in data storage.
    Timer Reporting, Get URL Timer Reporting, Data Storage Inbound If the data is not ready, the route picks up the URL from the data storage and runs another data readiness check every 30 seconds.
    Check Export REST Client Makes a request to the "status" URL.
    Log status Groovy Logs an event with the data readiness status.
    Complete? Router Checks the HTTP response status code returned by the FHIR server. The code 200 indicates that the server has returned a data package to the route. If the response code is different, the route waits for the next data readiness check.
    Timer Deactivation Timer Deactivation If a data package has been retrieved, stops the route timer to cancel the data readiness checks.
    Log Export Preparation Complete Groovy Logs an event to indicate that the exported data is ready for download. Stores the current XEServer message in the log.
    Remove URL Data Storage Inbound Removes the "status" URL from data storage.
    GET data URLs Groovy Extracts the URLs of data packages that have to be downloaded.
    Log Request Data Groovy Logs an event to indicate that the data download has started.
    Get Data FHIR Action For each URL extracted, makes a request to the FHIR server to retrieve a package with data.
    Aggregation Aggregation Aggregates NDJSON packages into a single message separated by new lines.
    Zip Zip Archives all the exported packages.
    Dump File System Outbound Stores the .zip archive on the file system.
    Log Data Ready Groovy Logs an event indicating that the data export is complete.

  • This route performs a data import to a FHIR server.

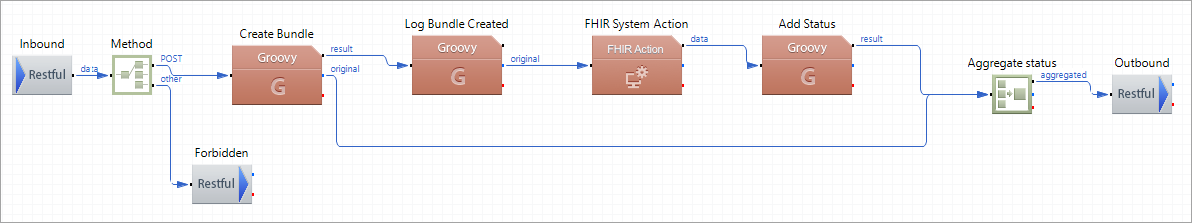

    Route Structure

    Route Components Description

    Component Name Component Type Description
    Inbound RESTful Web Service Inbound The entry point to initiate the data import process.
    Method Router Checks the HTTP method of the initial request and passes only POST requests further down the route for processing.
    Forbidden RESTful Web Service Outbound Returns the response 400 Bad Request to the caller if the initial request method is other than POST.
    Create Bundle Groovy Generates a FHIR bundle using the Groovy script ${XESProfileConfig}/artifacts/CreateBundle.groovy.
    Log Bundle Created Groovy Logs an event that the bundle has been generated.
    FHIR System Action FHIR System Action Submits the bundle to the FHIR server. Extracts the status code returned by the FHIR server and sends the code further down the route as a property.
    Add Status Groovy Injects the status code into XEServer message body.
    Aggregate status Aggregation Aggregates status responses into a single XEServer message.
    Outbound RESTful Web Service Outbound Returns the response to the caller.
