Amazon SQS Sample 270-271 Profile Workflow

The profile receives an EDI 270 Health Care Eligibility/Benefit Inquiry from the queue 270 Amazon SQS , validates the data, and if valid, the corresponding route component sends the data to the queue 270_To_Back_End. If the validation fails, the route sends a fake error message from the directory ${XESProfileConfig}/270-271/fake-error to the queue 270_invalid. The route that emulates the processing of a transaction from the queue 270_valid sends back a 271 response. The profile pushes the resulting data onto the Amazon SQS queue.

The profile contains the following routes:

270 Request Validation

Reads an original transaction from a queue, validates the transaction, and sends the transaction to the back end using the Amazon SQS queue.

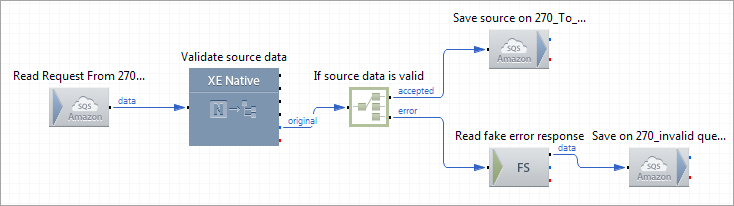

Route Structure

Route Components

Component Name	Component Type	Description
Read Request From 270 queue	Amazon SQS Inbound	Scans the Amazon SQS queue 270.fifo and reads messages, if any.
Validate source data	XE Native	Validates the incoming EDI 270 Health Care Eligibility/Benefit Inquiry transactions.
If source data is valid	Router	Checks the XEServer property ErrorCount and directs the message to the corresponding output.
Save source on 270_To_Back_End queue for further processing	Amazon SQS Outbound	Sends valid transactions to the route Back End Emulation and 271 return through the queue 270_To_Back_End.fifo.
Read fake error response	FS Inbound	Picks up the fake message from the directory ${XESProfileConfig}/270-271/fake-error when the transaction validation fails.
Save on 270_invalid queue	Amazon SQS Outbound	Sends a fake message to the Amazon SQS queue 270_invalid.fifo.

Back End Emulation and 271 return

This route emulates the back end processing of valid 270 transactions received from the route 270 Request Validation.

Route Structure

Route Components

Component Name	Component Type	Description
Read Source Data From 270_To_Back_End queue	Amazon SQS Inbound	Scans the Amazon SQS queue 270_To_Back_End and reads messages, if any.
Processing Emulation Delay	Delay	Applies 2 seconds of delay to emulate data processing.
Read Fake 271 Response	FS Inbound	Picks up fake 271 responses from the directory ${XESProfileConfig}/270-271/fake-271.
Save on 271 queue	Amazon SQS Outbound	Sends fake 271 responses to the Amazon SQS queue 271.fifo.
