Data Load Route
This route submits LDNS reports and acknowledgements to Edifecs Visualizer Server. If you plan to use Visualizer Server, create the HIPAA 837, 005010X222A1 Visualizer Server data store and the dashboard. If you do not plan to use Visualizer Server, disable this route and set the global VisualizerEnabled to false.

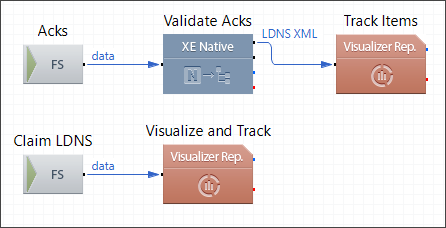

Route Structure
Route Components Description
| Acks
|
FS Inbound |
Picks up the generated acknowledgements from the file system. |
| Validate Acks
|
XE Native |
Validates acknowledgements. |
| Track Items
|
Visualizer Reporter |
Submits the acknowledgements to Visual Tracking. |
| Claim LDNS
|
FS Inbound |
Picks up LDNS reports from the file system. |
| Visualize and Track
|
Visualizer Reporter |
Submits LDNS reports to Visualizer Server. |
