DFF to 834 Route

This route shows the reverse data conversion from a custom DFF format (.csv files) into 834 EDI.

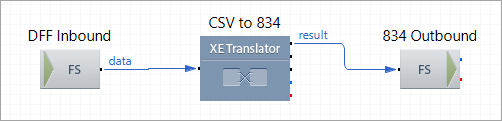

Route Structure

Route Components Description

Component Name Component Type Description
DFF Inbound FS Inbound Picks up the custom DFF data from the file system.
CSV to 834 XE Translator

Converts the custom DFF data into the 834 EDI format using the map DFF-834_Map.ems that is available in the directory ${XESProfileConfig}/artefacts.

834 Outbound FS Outbound

Stores the 834 EDI data files on the file system.
